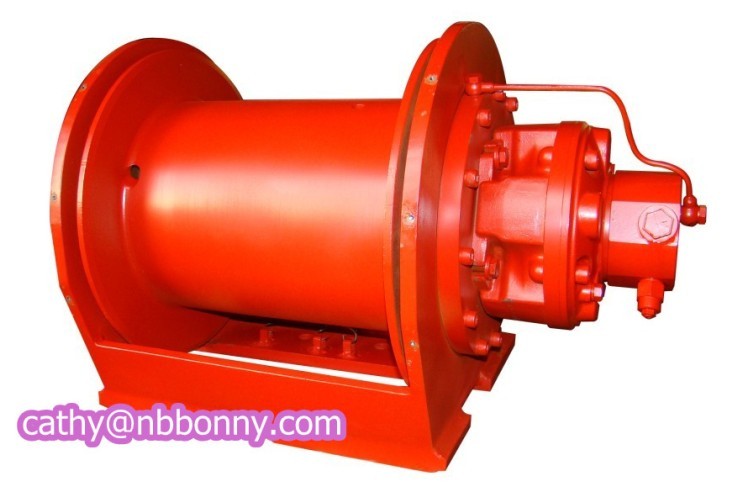

Hydraulic Winch Manufacturer Cathy@nbbonny.com
| Price : | ＄1.00 |
| Minimum Order : | 2 (set) |
| Product Status : | New |
| Sample Available : | no |
| Shipment Terms : | fob,cfr,cif,Negotiable |
| Payment Mode : |
T/T,L/C |
| Categories : | Machinery, Construction Machinery, Elevator |
| Posted By : | Ningbo Bonny Hydraulics Transmission Co.,ltd |
Description
We are China-based manufacturer of hydraulic winches.
We can offer hydraulic winch for drilling rig, marine crane, mobile crane, dredger and so on.
Description of winch:
1. Pull Force: 0.5ton---50ton
2. Rope Speed: On requirement
3. Drive device: Orbital motor, Piston hydraulic motor, Bent axis hydraulic motor
4. Can be equipped with: Brake, Counter balance valve, Rope aligning appliance
Competitive advantage:
1. Short delivery
2. Competitive price
3. Instant technical support
4. 12 months quality guarantee period
5. Custom product
Export Area: Spain, Inidia, Indonesia, Italy, Thailand, German, South Africa, Vietnam and so on.
If you are interested, please contact me for more details.
| Model | The 1st layer | Diameter of reel bottom (mm) | Total displacement (ml/r) | Working pressures diff. (Mpa) | Diameter of rope (mm) | Capacity of rope (mm) | Hydraulic motor | Gearbox Model | |
| Pull Force (KN) | Rope Speed (m/min) | ||||||||
| GW2.5-10-60-10-ZP | 10 | 0-30 | 238 | 575 | 15.0 | 10 | 60 | GM05-110D51 | C2.5-5 |
| GW2.5-20-50-12-ZP | 20 | 0-30 | 238 | 1050 | 17.0 | 12 | 50 | GM05-200D51 | C2.5-5.5 |
| GW3-30-65-15-ZP | 30 | 0-35 | 305 | 2125 | 15.9 | 15 | 65 | GM2-420D51 | C3-5 |
| GW3-40-60-16-ZP | 40 | 0-35 | 305 | 2711.5 | 16.4 | 16 | 60 | GM2-500D51 | C3-5.5 |
| GW4-50-70-20-ZP | 50 | 0-40 | 380 | 4365 | 16.3 | 20 | 70 | GM3-900D240101 | C4-5 |
| GW4-60-68-21.5-ZP | 60 | 0-40 | 380 | 5428.5 | 16.0 | 21.5 | 68 | GM3-1000D240101 | C4-5.5 |
| GW5-80-100-24-ZP | 80 | 0-40 | 470 | 9080 | 15.6 | 24 | 100 | GM5-1800D240101 | C5-5 |
| GW5-100-90-28-ZP | 100 | 0-40 | 470 | 11039 | 16.0 | 28 | 90 | GM5-2000D240101 | C5-5.5 |
| GW6-120-176-30-ZP | 120 | 0-30 | 600 | 16725 | 17.0 | 30 | 175 | GM6-3000D480101 | C6-5.5 |
| GW6-150-150-34-ZP | 150 | 0-25 | 600 | 16725 | 19.8 | 34 | 150 | GM6-3000D480101 | C6-5.5 |
 |
|
